Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H

Model Number : LC86H280+LCDA808H

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $100-109.80 / set

Phase : 2, 2-Phase

Type : Hybrid, LC86H280+LCDA808H

Current / Phase : 6A

Warranty : 3 months ~ 1 year

Name : Nema34 closed loop stepper motor kit

Voltage : DC20-50V

Application : High Speed CNC Machine

Step Angle (°) : 1.8

Torque : 4.5N.M

motor current : 6A

Motor length : 105mm

PPR : 1000

Contact Now

Lichuan stepper motor nema 34 4.5N.m 6A 2 Phase Nema 34 closed loop stepper motor with driver kit LC86H280+LCDA808H

Product Description

Nema34 LC86H280 Motor specification:

Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H

Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H

Motor Driver LCDA808H Products information :

Parameter/Value

LCDA808H

Minimum

Typical

Maxmum

unit

Maximum current

-

-

8

A

Input power voltage

50

70

80

VAC

Logic input current

7

10

16

mA

Pulse frequency

-

200

-

kHz

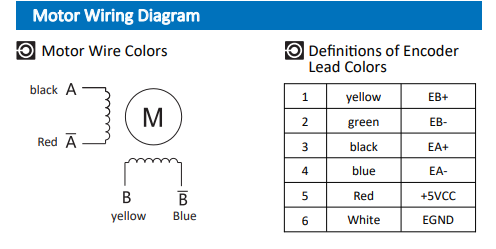

Pin

Symbol

Color

Name

2

EB+

Yellow

Motor encoder B phase positive input

12

EB-

Green

Motor encoder B phase negative input

1

EA+

Black

Motor encoder A Phase positive input

11

EA-

Blue

Motor encoder A phase negative input

13

VCC

Red

Encoder + 5V input

3

EGND

White

Encoder power ground

Motor Nema34 and Driver pictures:

Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H
Lichuan Driver LCDA808H Panel Instruction :

LCDA808H adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step

missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation

and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to

2 phase Nema34 closed loop motors, has both stepper and servo advantages, low noise, strong anti-interference capacity,

is suitable for high speed, external digital debugging panel and easy parameter settings and monitoring.

Functional Characteristics

Voltage input range: AC50V~80V

Max peak current: 8A

Subdivision range: 200~51200ppr

Pulse response frequency: 200KHZ

Signal input: Differential/single terminal, pulse/direction

External digital debugging panel, easy parameter settings and monitoring.

Over-voltage, over-current, tracking error and out of error protection functions.

Closed loop vector control, assure high-speed large-torque output and no step missing of motor.

Serial port communication function, current, subdivision, signal edge and alarm output logic functions can be adjusted.

Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H
