2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines

Name: 2 Phase 65NM LC86H298LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
Brand: LICHUAN
Price: 103 USD

Quality 2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines wholesale

Model Number : LC86H298+LCDA808H

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $103-113 / set

Phase : 2, 2-Phase

Type : Hybrid, LC86H298+LCDA808H

Current / Phase : 6A

Warranty : 3 Months

Name : Nema34 closed loop stepper motor kit

Voltage : DC20-50V

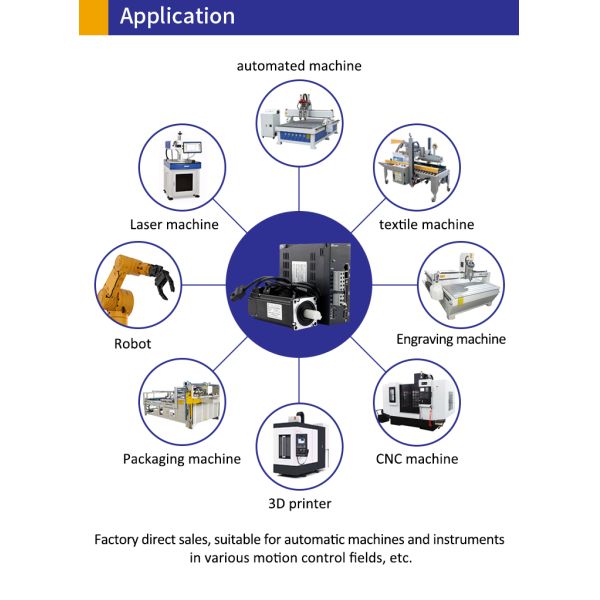

Application : High Speed CNC Machine

Torque : 6.5N.M

motor current : 6A

Motor length : 98+22mm

PPR : 1000

motor weight : 3.3Kg

Contact Now

2 Phase 6.5 N.m LC86H298+LCDA808H Nema 34 closed loop stepper motor driver for CNC machines

Product Description

Nema34 LC86H298 Motor specification:

Motor model	Step/angle	Length	Holding torque	Current	Rotor inertia	Encoder line	Lead wire	Weight
Motor model	°	mm	N.M	A	g.cm2	PPR	NO.	Kg
LC86H260	1.8	60+22	3	6	1100	1000	4	2.0
LC86H268	1.8	68+22	3.5	6	1400	1000	4	2.2
LC86H280	1.8	80+22	4.5	6	1800	1000	4	2.5
LC86H298	1.8	98+22	6.5	6	2800	1000	4	3.3
LC86H2120	1.8	120+22	8.2	6	3600	1000	4	4.0
LC86H2128	1.8	130+22	10	7.5	4200	1000	4	4.5
LC86H2160	1.8	156+22	12	7.5	5400	1000	4	5.

Motor Driver LCDA808H Products information :

Parameter/Value	LCDA808H
Parameter/Value	Minimum	Typical	Maxmum	unit
Maximum current	-	-	8	A
Input power voltage	50	70	80	VAC
Logic input current	7	10	16	mA
Pulse frequency	-	200	-	kHz

Pin	Symbol	Color	Name
2	EB+	Yellow	Motor encoder B phase positive input
12	EB-	Green	Motor encoder B phase negative input
1	EA+	Black	Motor encoder A Phase positive input
11	EA-	Blue	Motor encoder A phase negative input
13	VCC	Red	Encoder + 5V input
3	EGND	White	Encoder power ground

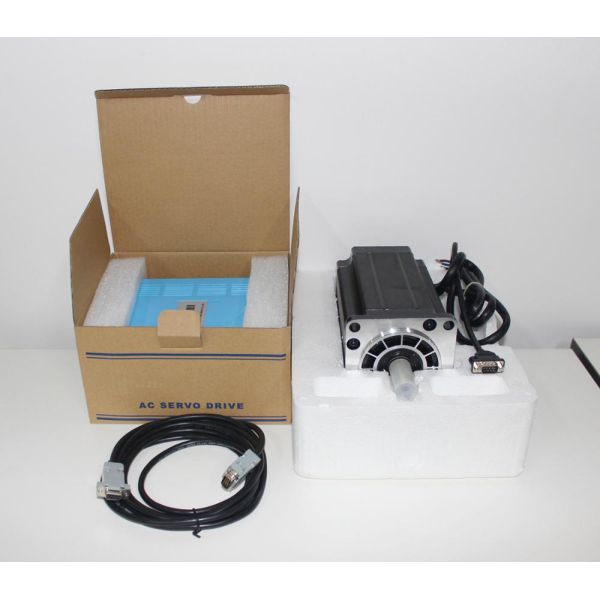

Motor Nema34 and Driver pictures:

2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines

Lichuan Driver LCDA808H Panel Instruction :
